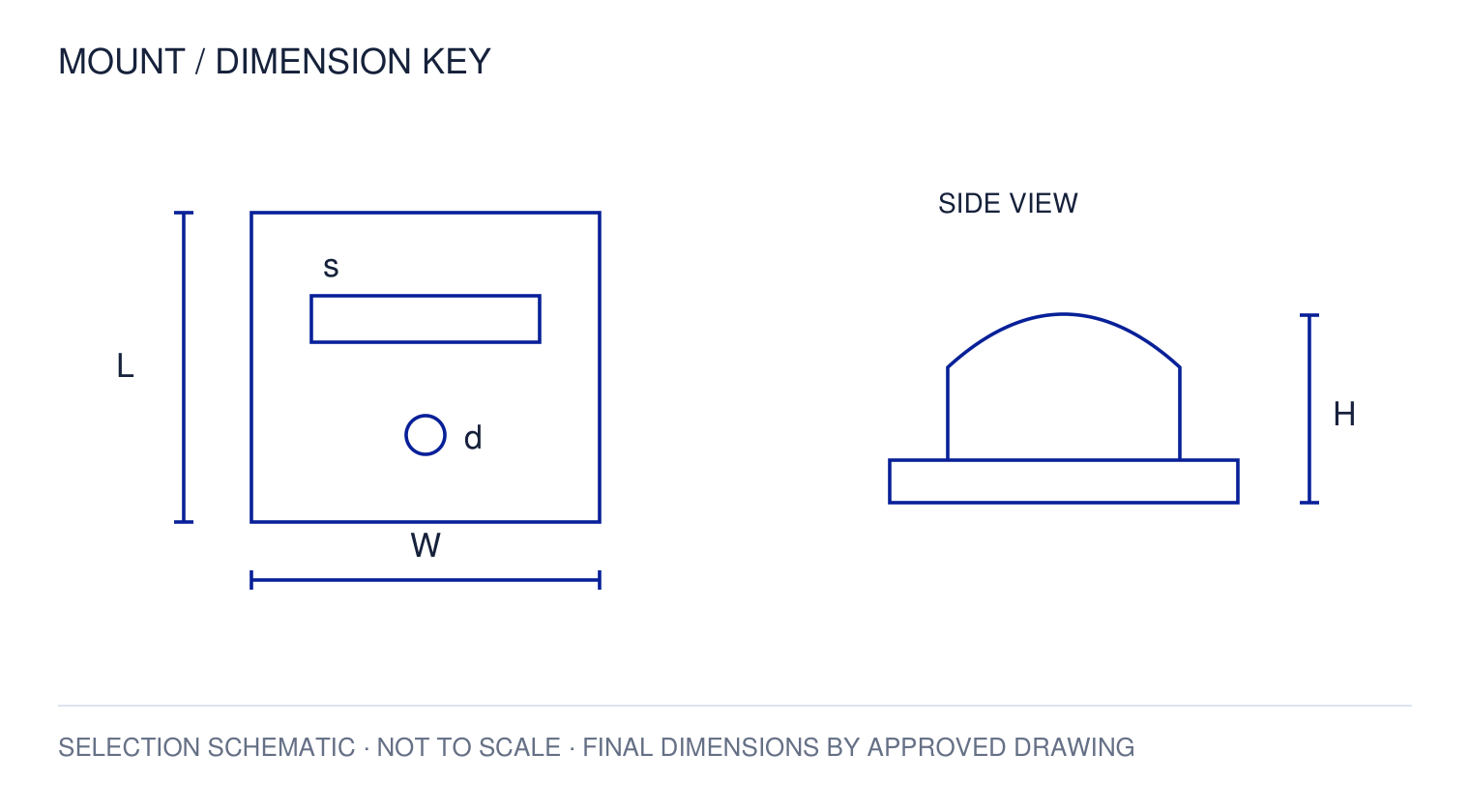

SELECTION DRAWING
20 × 20 / 30 × 30 mm Cable Tie Mount — dimension key
W/L: base dimensions; s: tie slot; d: fixing hole; H: base height. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601817858006
20 × 20 / 30 × 30 mm Cable Tie Mount
A cable-tie mount provides a fixing point through which a separate tie is routed. Choose a mount that accommodates the tie width and the intended attachment method.
Request a quotationSelection schematic, not a product photograph. Final appearance and configuration require an approved drawing or sample.
PRODUCT INTRODUCTION
20 × 20 / 30 × 30 mm Cable Tie Mount
A cable-tie mount provides a fixing point through which a separate tie is routed. Choose a mount that accommodates the tie width and the intended attachment method.
This product reference
The listed footprint options are 20 × 20 and 30 × 30 mm. Specify the selected size and fixing arrangement.
Applications
Panel and surface cable-bundle fixing.
Selection & installation
Specify base dimensions, tie-slot width, fixing-hole size or adhesive backing, substrate and installed load.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
