SELECTION DRAWING

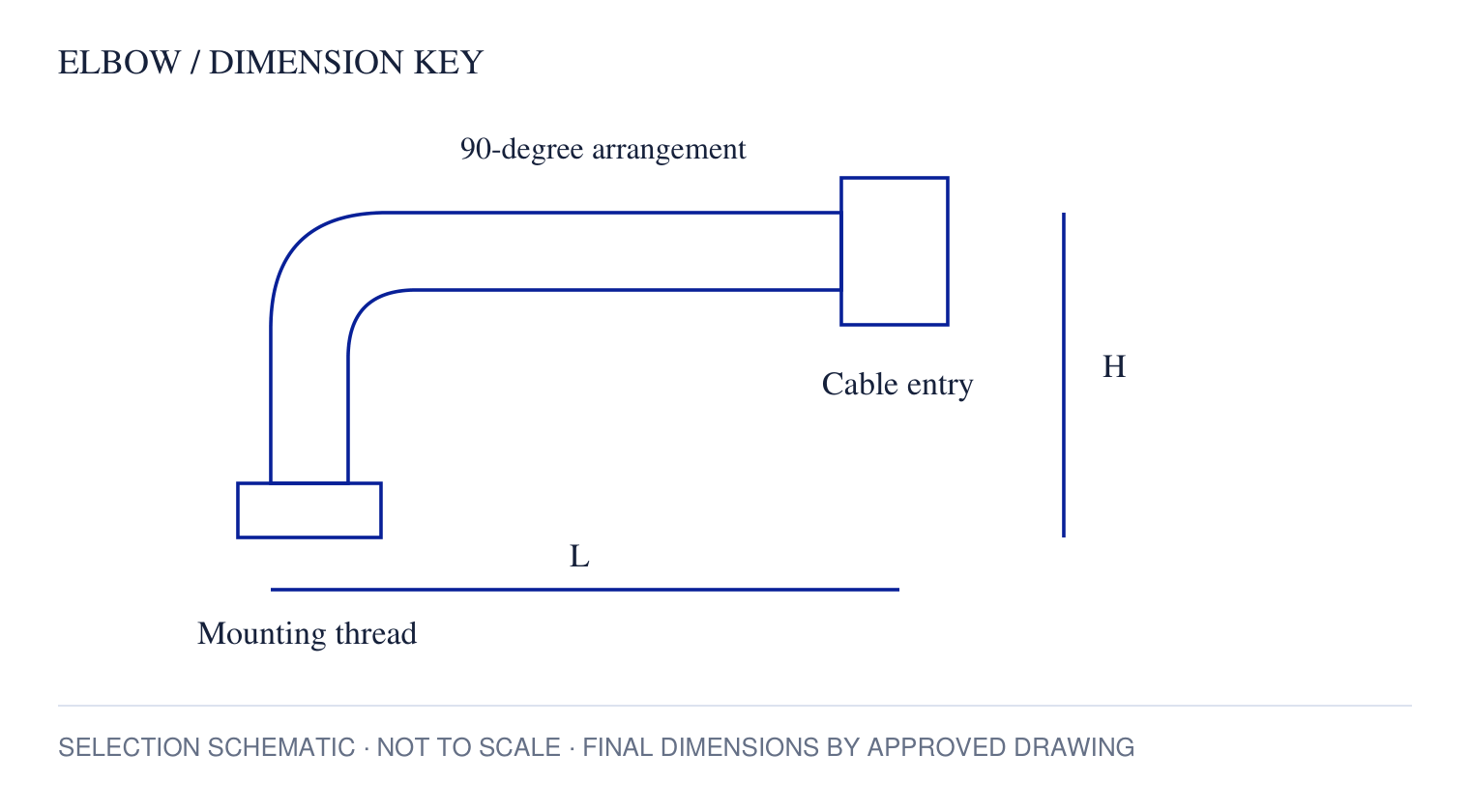

Elbow Glands — engineering details
L/H: installation envelope; confirm mounting thread and cable-entry dimensions. Selection schematic; not a production drawing.
CONSTRUCTION OPTIONS
Right-angle Cable Entries
A right-angle entry changes the outgoing cable direction. Check installed clearances, thread, panel thickness and cable bend requirements.
Enquire about this constructionClick image to enlarge
DRAWING & SAMPLE
Confirm the complete assembly.
Share a drawing or sample with your application and target quantity. We confirm dimensions, material, available documentation and packing with the quotation.
Continue your selection
Review the family specifications, or send us the installation details to discuss available constructions.
