CATALOGUE DRAWING

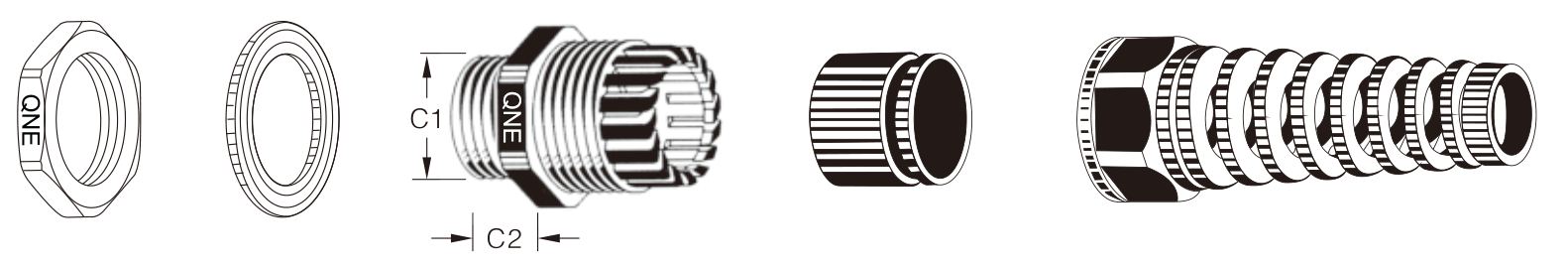

Spiral Glands — engineering details
C1: mounting-thread diameter; C2: thread length; A/F: spanner size; cable range: sealing envelope. Assembly construction; confirm the selected dimensions.
CONSTRUCTION OPTIONS
Spiral Strain-relief Glands
An extended spiral section guides the outgoing cable. Confirm cable flexibility, movement, available clearance, thread and cable clamping range.
Enquire about this constructionClick image to enlarge
DRAWING & SAMPLE
Confirm the complete assembly.
Share a drawing or sample with your application and target quantity. We confirm dimensions, material, available documentation and packing with the quotation.
Continue your selection
Review the family specifications, or send us the installation details to discuss available constructions.
