SELECTION DRAWING

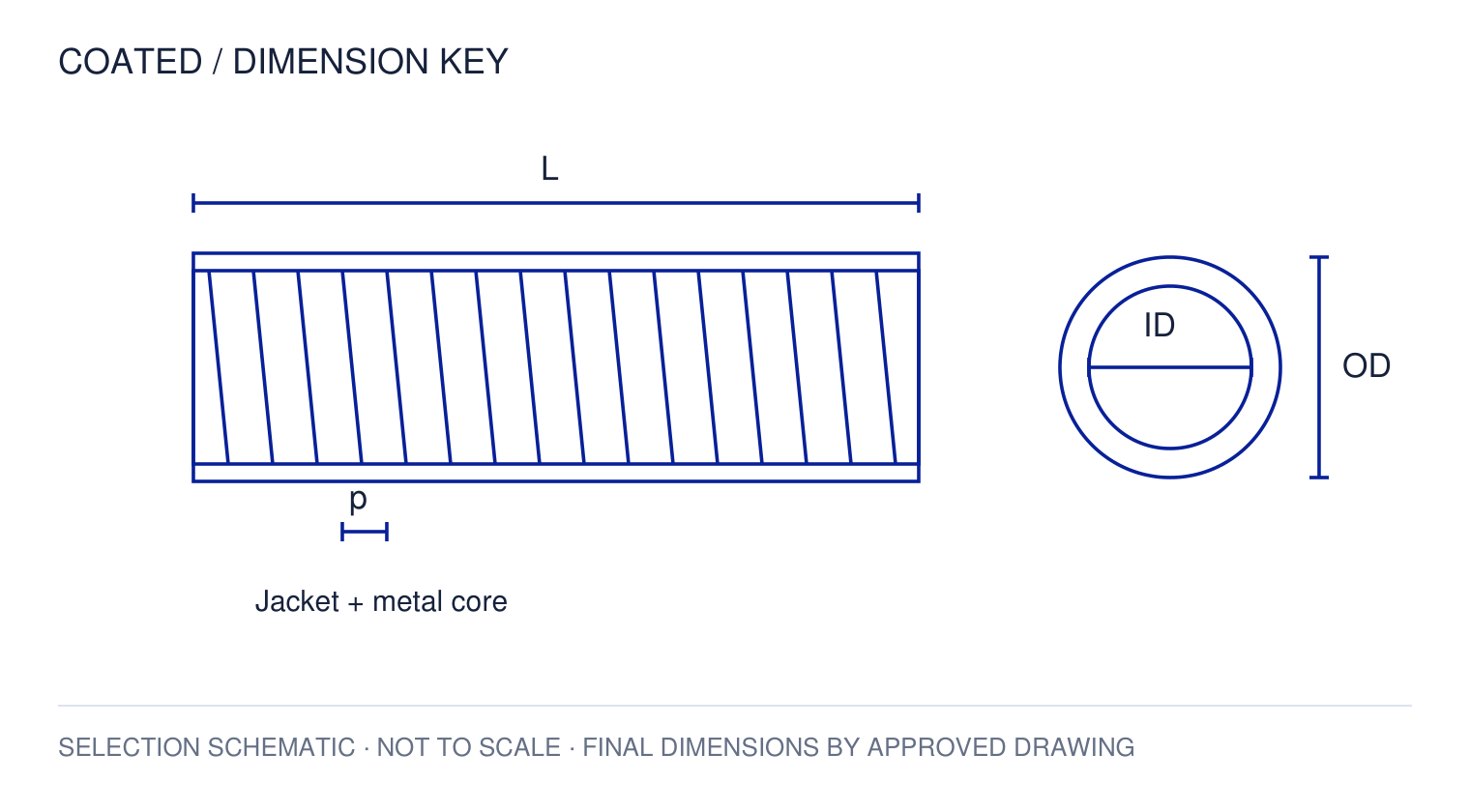

PVC-coated Iron Hose — Listing Review Required — dimension key
L: finished length; OD: jacket diameter; ID: clear bore; R: bend radius. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601827813028
PVC-coated Iron Hose — Listing Review Required
A polymer jacket surrounds the flexible metal core. Select the core and jacket independently to suit the cable route and surrounding environment. Jacket appearance alone does not establish an ingress-protection rating.
Request a quotationProduct illustration based on a supplied product-family reference. Confirm the selected dimensions and end details by drawing or sample.
PRODUCT INTRODUCTION
PVC-coated Iron Hose — Listing Review Required
A polymer jacket surrounds the flexible metal core. Select the core and jacket independently to suit the cable route and surrounding environment. Jacket appearance alone does not establish an ingress-protection rating.
This product reference
This coated iron-hose listing is grouped with goosenecks in the store. Its ability to hold position is not established; confirm whether the required duty is cable protection or fixture support.
Applications
Cable routes requiring a covered outer surface, including machinery and equipment installations.
Selection & installation
Confirm core grade, jacket material, corrugated or smooth finish, bend radius and compatible sealing fittings.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
