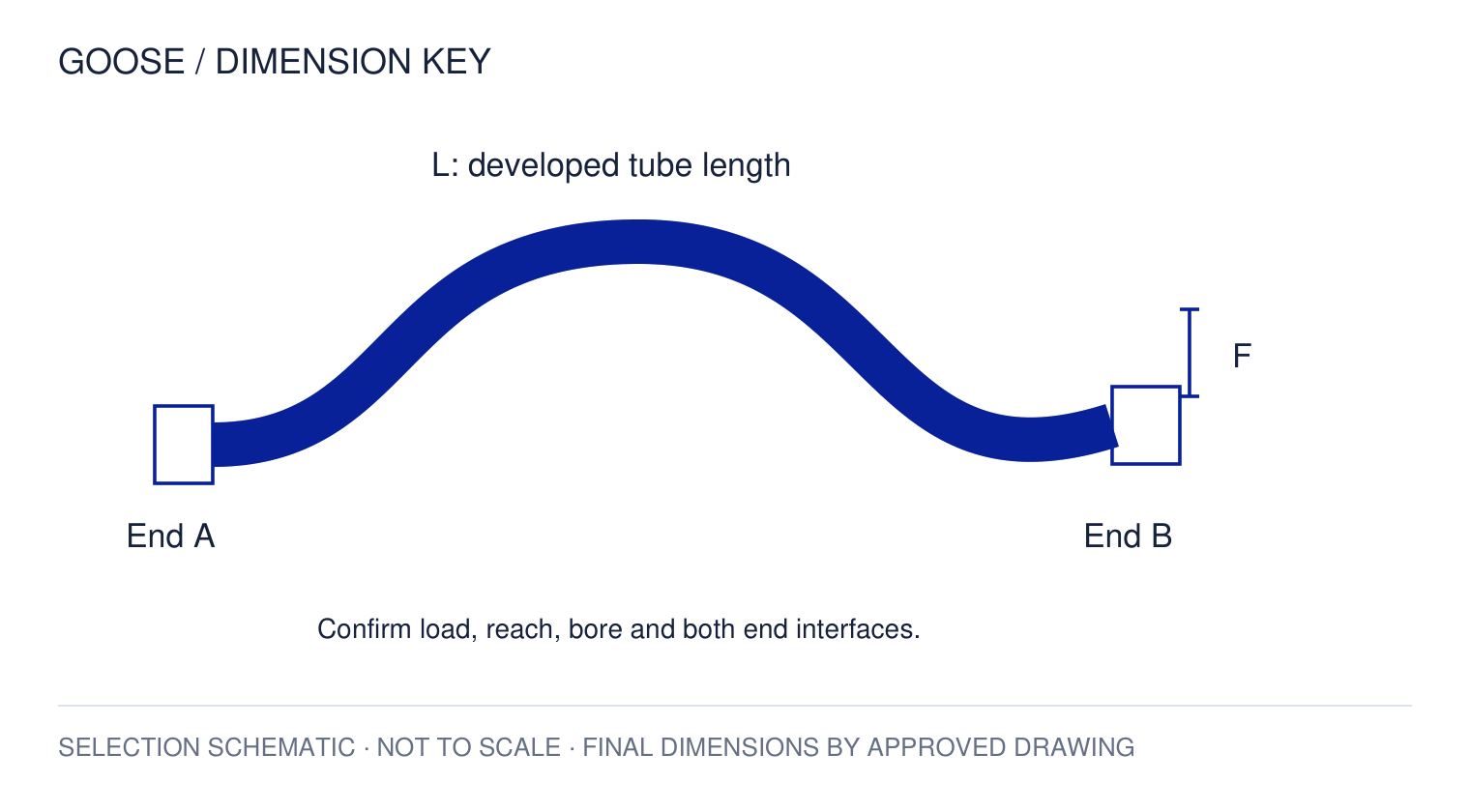

SELECTION DRAWING
Male-thread Gooseneck Arm — dimension key
L: developed tube length; OD/ID: tube envelope/bore; A/B: end interfaces; F: applied load. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601938625614
Male-thread Gooseneck Arm
A positionable tube supports an adjustable fixture while allowing its orientation to change. Holding ability depends on construction, unsupported length, load and mounting orientation.
Request a quotationProduct illustration based on a supplied product-family reference. Confirm the selected dimensions and end details by drawing or sample.
PRODUCT INTRODUCTION
Male-thread Gooseneck Arm
A positionable tube supports an adjustable fixture while allowing its orientation to change. Holding ability depends on construction, unsupported length, load and mounting orientation.
This product reference
This reference is offered as male-thread gooseneck arm. Specify the required size and configuration in the enquiry; dimensions and construction are confirmed against the selected item.
Applications
Adjustable lighting and fixture supports with a confirmed load requirement.
Selection & installation
Specify finished length, diameter, clear bore if required, both end interfaces and the load at the intended reach. Confirm adjustment-cycle requirements.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
