ENGINEERING DETAILS

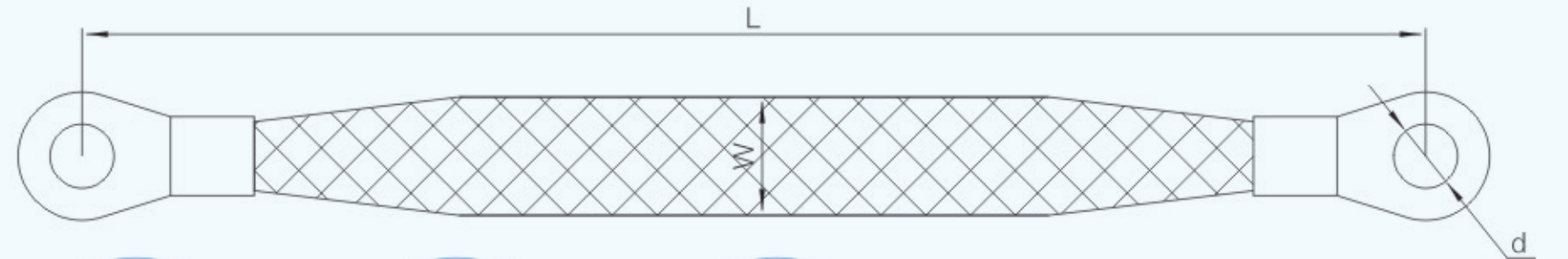

Lug-ended copper braid assembly
L = hole-centre length; W = braid width; d = terminal-hole diameter. Lug type, conductor area and finish are specified with the assembly.
CONSTRUCTION OPTIONS
Terminated Copper Connections
Flexible copper braid finished with defined connection ends. Specify conductor area, flexible length, pad dimensions, hole centres, finish and insulation.
Enquire about this constructionClick image to enlarge
DRAWING & SAMPLE
Confirm the complete assembly.
Share a drawing or sample with your application and target quantity. We confirm dimensions, material, available documentation and packing with the quotation.
Continue your selection
Review the family specifications, or send us the installation details to discuss available constructions.
CONSTRUCTION & DIMENSIONS
Explore the engineering details.
Choose the construction that matches your application. Final dimensions and tolerances are confirmed for the selected product.
ENGINEERING DETAILS

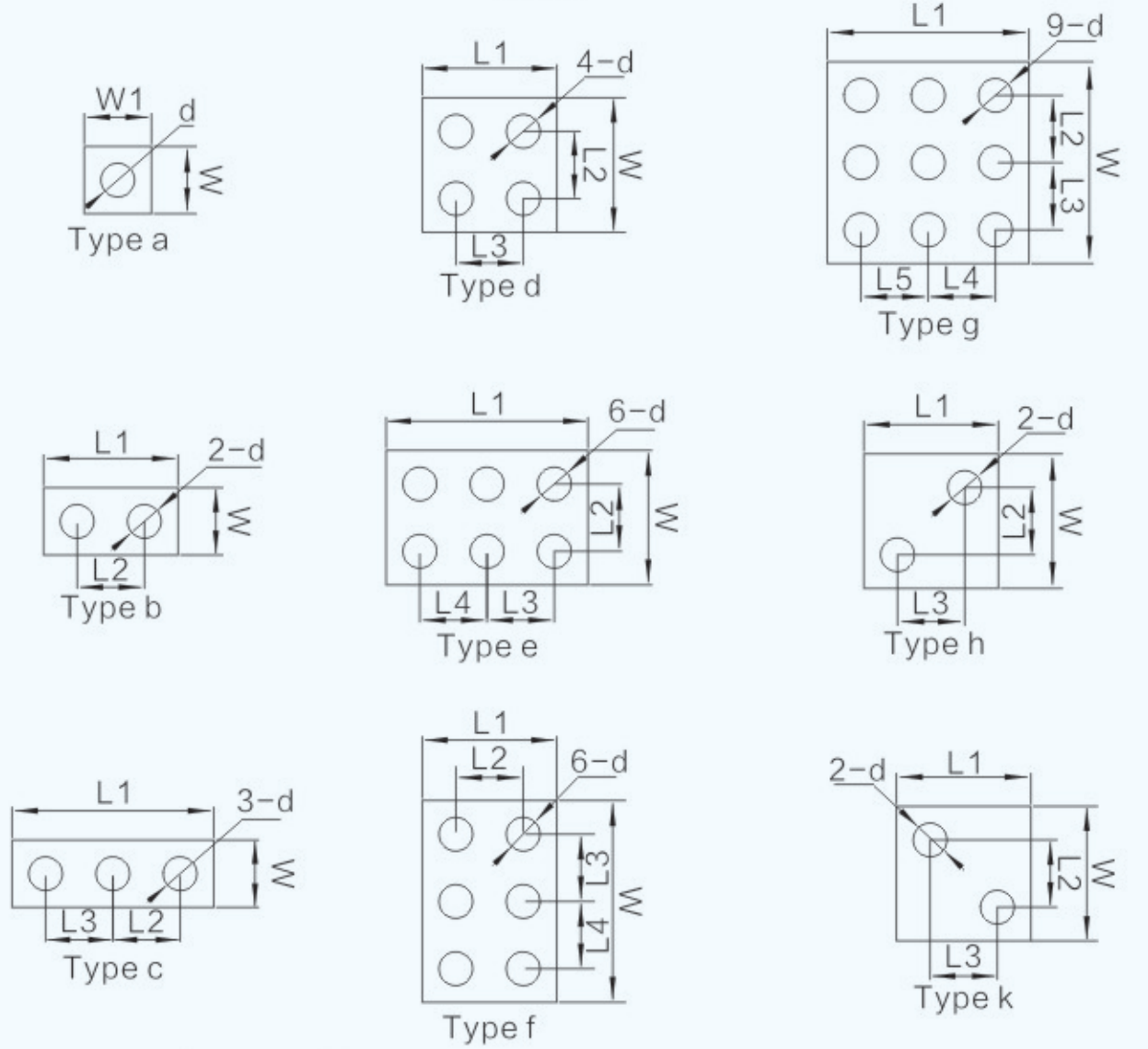

Copper terminal hole-pattern options
Select pattern a–h or k. W and W1/L1 describe the pad envelope; L2–L5 identify the indicated pitches; d is hole diameter. All values require an approved assembly drawing.
