SELECTION DRAWING

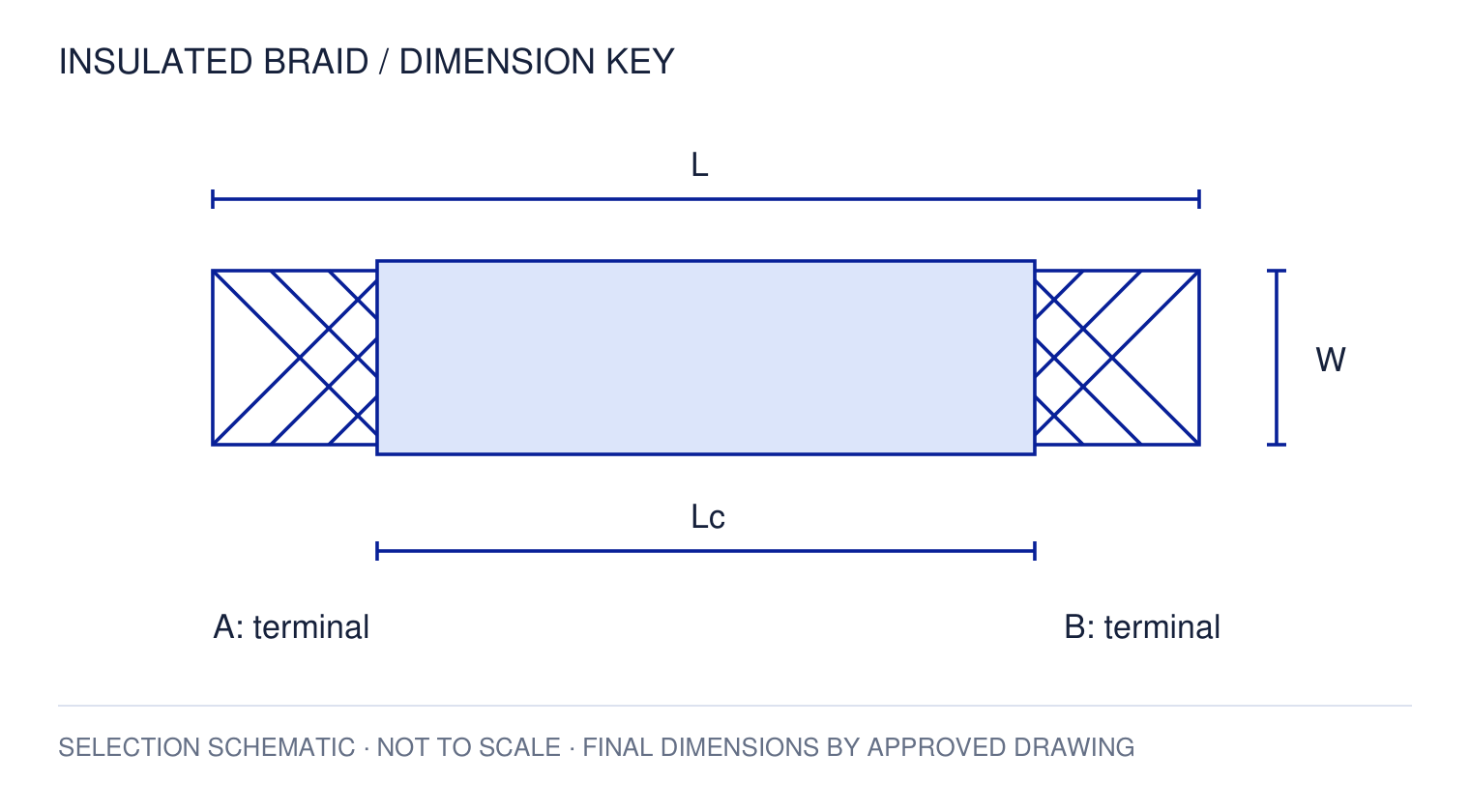

PVC-insulated Copper Woven Connection Tape — dimension key
L: assembly length; Lc: covering length; W: conductor width; A/B: terminal definitions. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601793413643
PVC-insulated Copper Woven Connection Tape
An insulating covering surrounds the flexible copper section while connection areas remain available at the ends. The conductor, covering and terminal arrangement are selected as one assembly.
Request a quotationProduct illustration based on a supplied product-family reference. Confirm the selected dimensions and end details by drawing or sample.
PRODUCT INTRODUCTION
PVC-insulated Copper Woven Connection Tape
An insulating covering surrounds the flexible copper section while connection areas remain available at the ends. The conductor, covering and terminal arrangement are selected as one assembly.
This product reference
This reference is offered as pvc-insulated copper woven connection tape. Specify the required size and configuration in the enquiry; dimensions and construction are confirmed against the selected item.
Applications
Covered bonding and flexible equipment connections with specified exposed contact areas.
Selection & installation
Confirm conductor area, covering material, free flexible length, sleeve coverage and terminal geometry. Do not transfer a sleeve rating to the complete assembly.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
