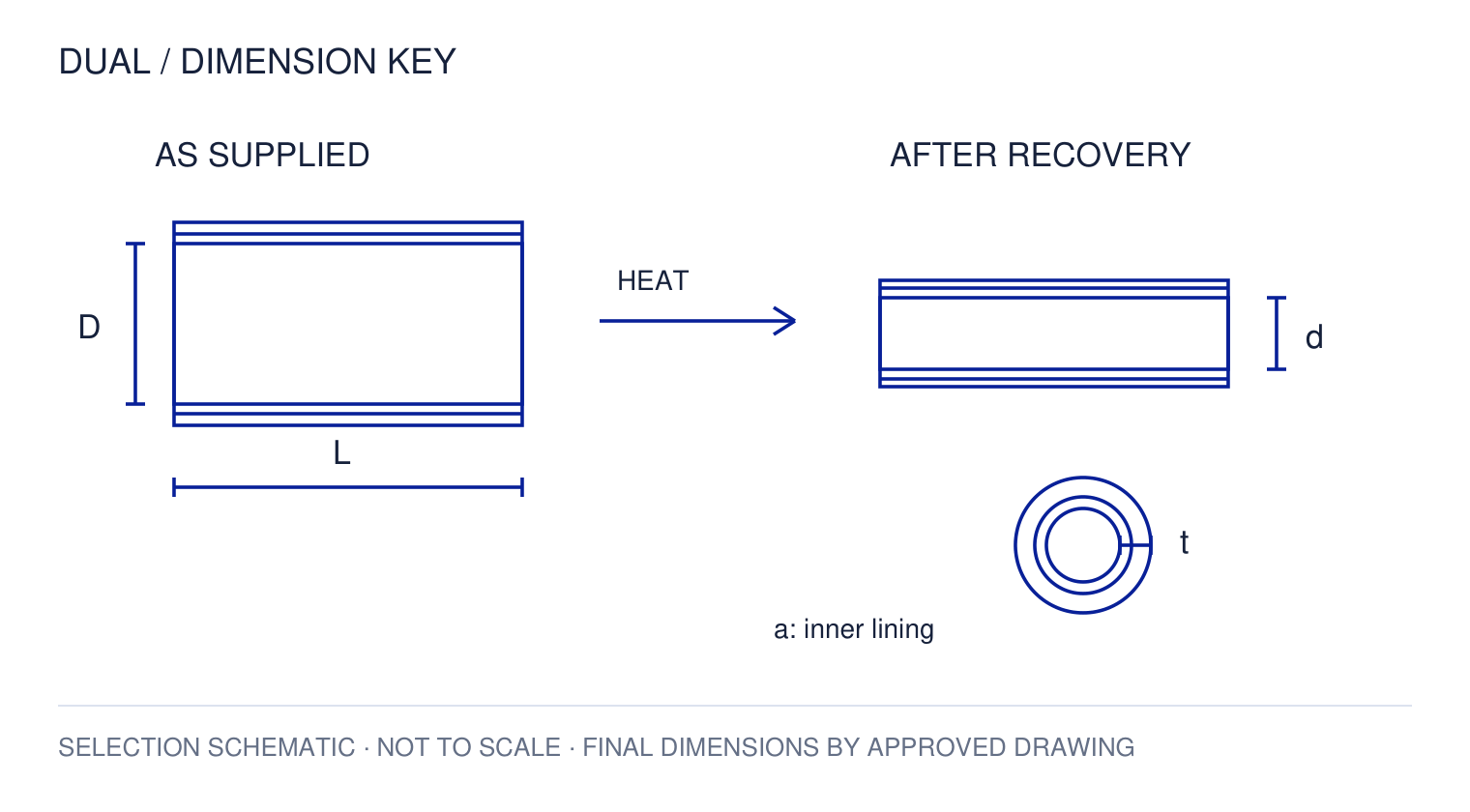

SELECTION DRAWING
DHRT-2 Double-wall Heat Shrink Tubing — dimension key
D: expanded bore; d: recovered bore; t: total recovered wall; a: inner lining; L: cut length. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601961376662
DHRT-2 Double-wall Heat Shrink Tubing
Double-wall heat-shrink tubing combines an outer sleeve with an inner lining. Select the bore and recovered wall around the actual joint, and confirm the lining material and substrate compatibility.
Request a quotationProduct illustration based on a supplied product-family reference. Confirm the selected dimensions and end details by drawing or sample.
PRODUCT INTRODUCTION
DHRT-2 Double-wall Heat Shrink Tubing
Double-wall heat-shrink tubing combines an outer sleeve with an inner lining. Select the bore and recovered wall around the actual joint, and confirm the lining material and substrate compatibility.
This product reference
This reference is offered as dhrt-2 double-wall heat shrink tubing. Specify the required size and configuration in the enquiry; dimensions and construction are confirmed against the selected item.
Applications
Cable joints and terminations requiring a lined heat-shrink construction.
Selection & installation
Specify the expanded and recovered diameters, lining type, recovery conditions and sleeve overlap. Sealing performance is confirmed for the complete assembly.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
