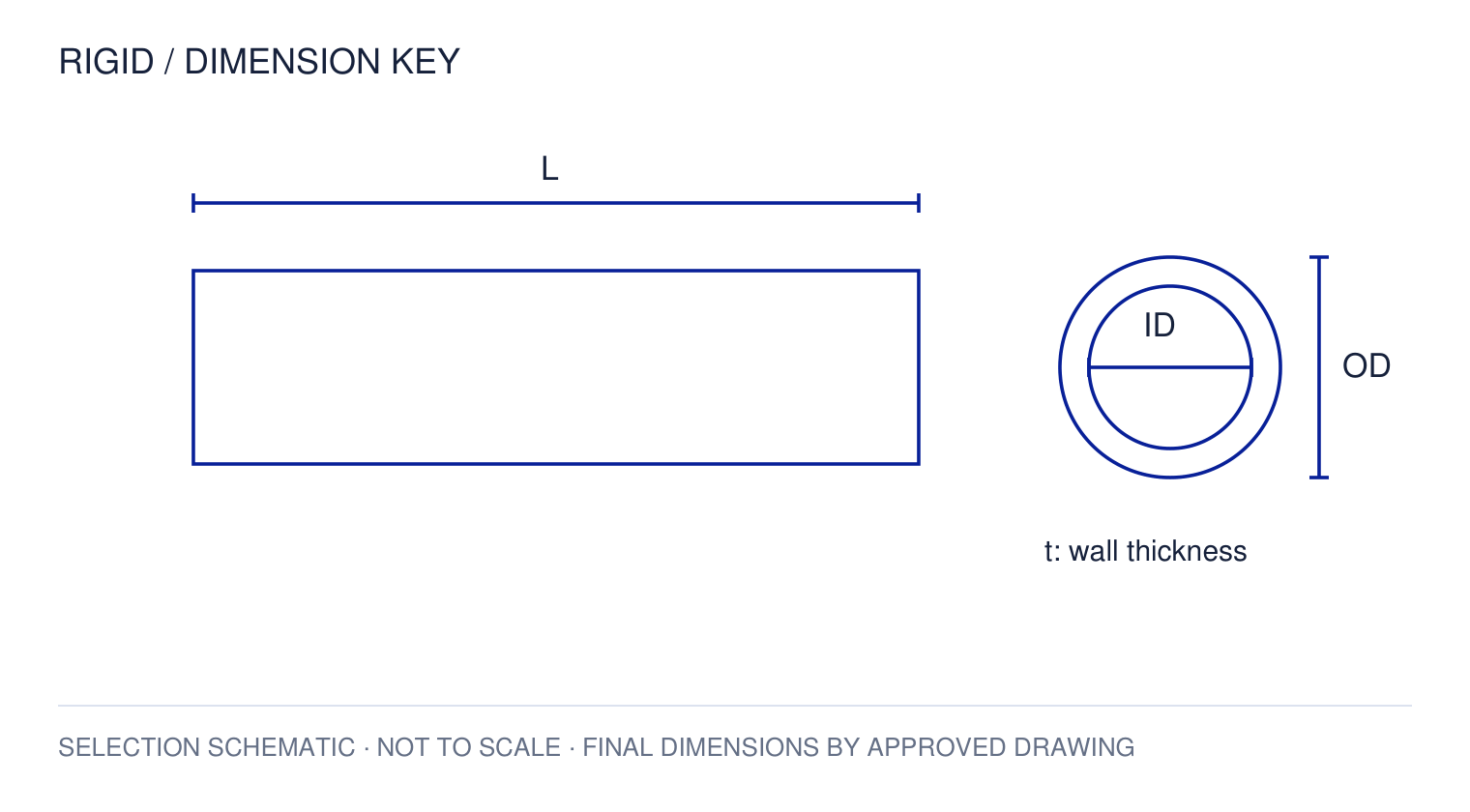

SELECTION DRAWING
Galvanized Electrical Metallic Tubing — dimension key
L: tube length; OD: outside diameter; ID: inside diameter; t: wall thickness. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601795765894
Galvanized Electrical Metallic Tubing
Rigid electrical metallic tubing provides a defined route for insulated conductors. Tube dimensions, wall construction and connector compatibility must match the intended conduit system.
Request a quotationProduct illustration based on a supplied product-family reference. Confirm the selected dimensions and end details by drawing or sample.
PRODUCT INTRODUCTION
Galvanized Electrical Metallic Tubing
Rigid electrical metallic tubing provides a defined route for insulated conductors. Tube dimensions, wall construction and connector compatibility must match the intended conduit system.
This product reference
This reference is offered as galvanized electrical metallic tubing. Specify the required size and configuration in the enquiry; dimensions and construction are confirmed against the selected item.
Applications
Fixed building-services and equipment cable routing.
Selection & installation
Confirm nominal size versus actual outside diameter, wall thickness, length, coating and the compatible coupling system.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
