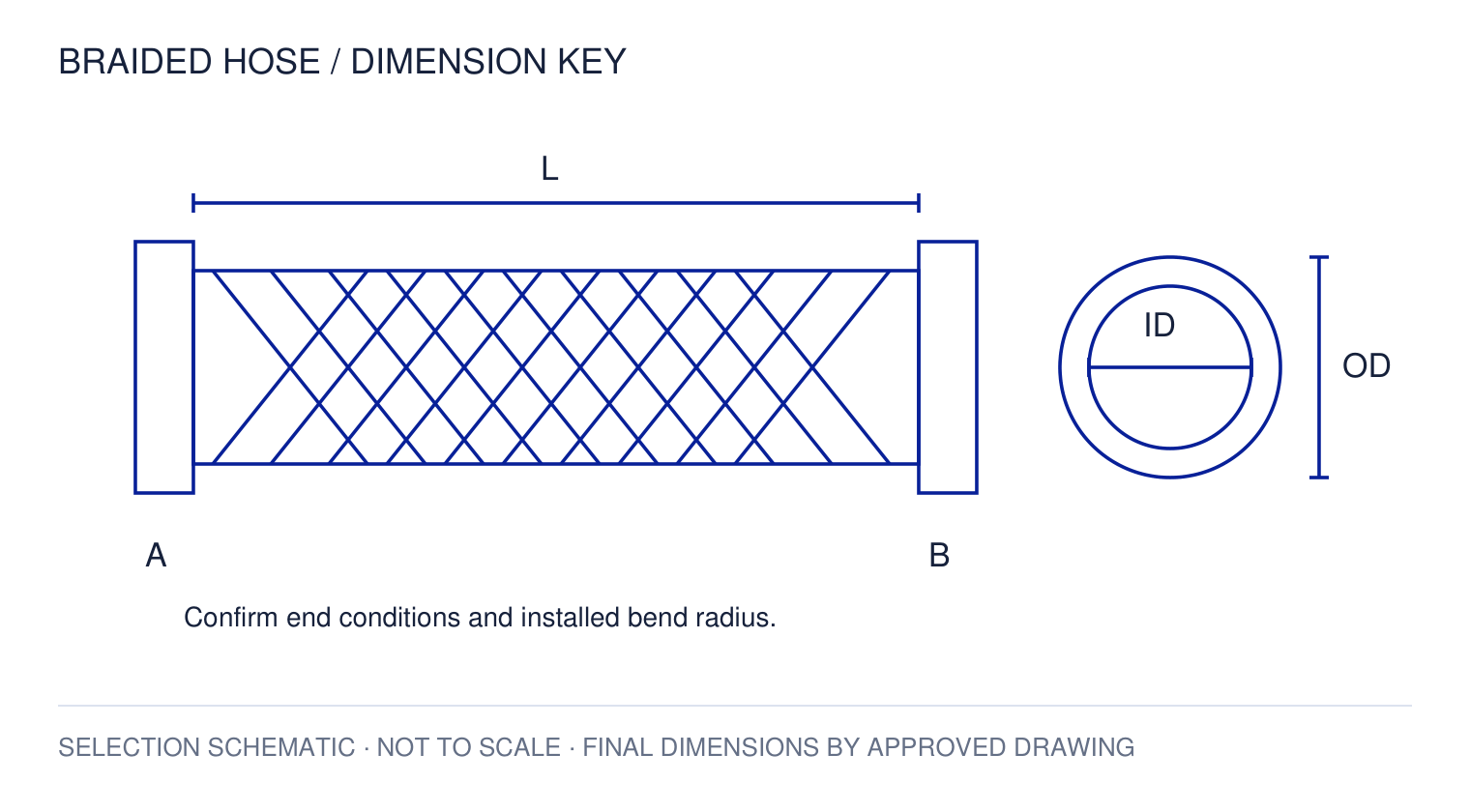

L: assembly length; D: hose envelope; A/B: end interfaces; R: bend radius. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601813115039
Flat Braided Flexible Metal Hose
A flexible metal hose with an external braided layer requires a construction-specific specification. Establish whether the selected assembly is for fluid service or mechanical protection before ordering.
Request a quotationProduct illustration based on a supplied product-family reference. Confirm the selected dimensions and end details by drawing or sample.
PRODUCT INTRODUCTION
Flat Braided Flexible Metal Hose
A flexible metal hose with an external braided layer requires a construction-specific specification. Establish whether the selected assembly is for fluid service or mechanical protection before ordering.
This product reference
This reference is offered as flat braided flexible metal hose. Specify the required size and configuration in the enquiry; dimensions and construction are confirmed against the selected item.
Applications
Equipment connections where a flexible metal assembly is required.
Selection & installation
Provide the duty, core construction, braid layers, end geometry and operating conditions. Confirm pressure capability only for the approved hose assembly.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
