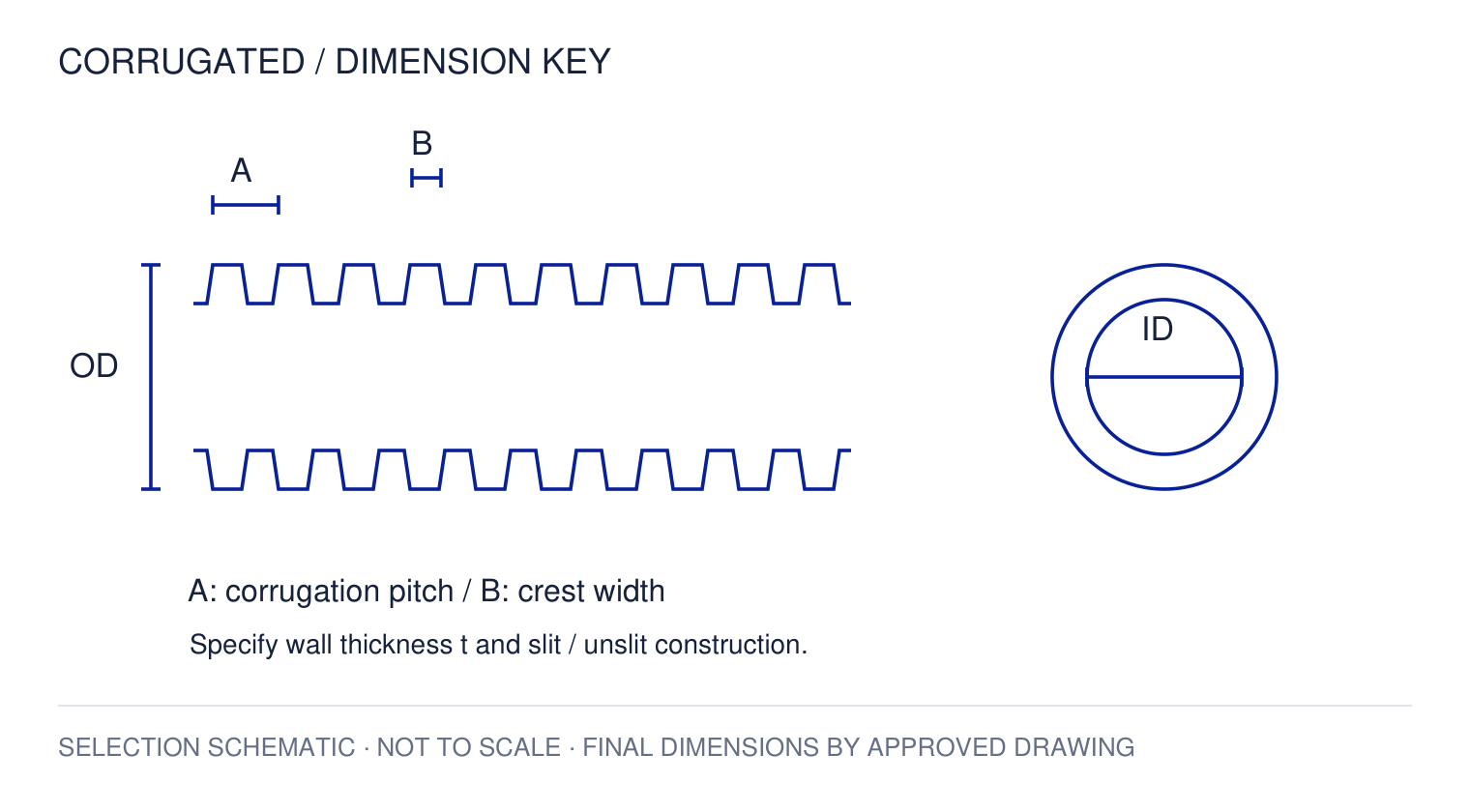

SELECTION DRAWING
1-inch PA / PP Corrugated Conduit — dimension key
ID/OD: bore/crest diameter; t: wall; A: corrugation pitch; B: crest width; L: length. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601946804603
1-inch PA / PP Corrugated Conduit
A corrugated polymer conduit provides a flexible enclosure around a cable bundle. Bore and crest diameter are different measurements; both are needed to match cables and fittings.
Request a quotationProduct illustration based on a supplied product-family reference. Confirm the selected dimensions and end details by drawing or sample.
PRODUCT INTRODUCTION
1-inch PA / PP Corrugated Conduit
A corrugated polymer conduit provides a flexible enclosure around a cable bundle. Bore and crest diameter are different measurements; both are needed to match cables and fittings.
This product reference
The listing describes a 1-inch PA / PP conduit. Select the polymer and confirm actual bore and crest diameter.
Applications
Harness and equipment cable protection in the selected polymer grade.
Selection & installation
Specify polymer, bore, outside diameter, wall, corrugation pitch and slit or unslit construction. Confirm bend radius and connector compatibility.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
