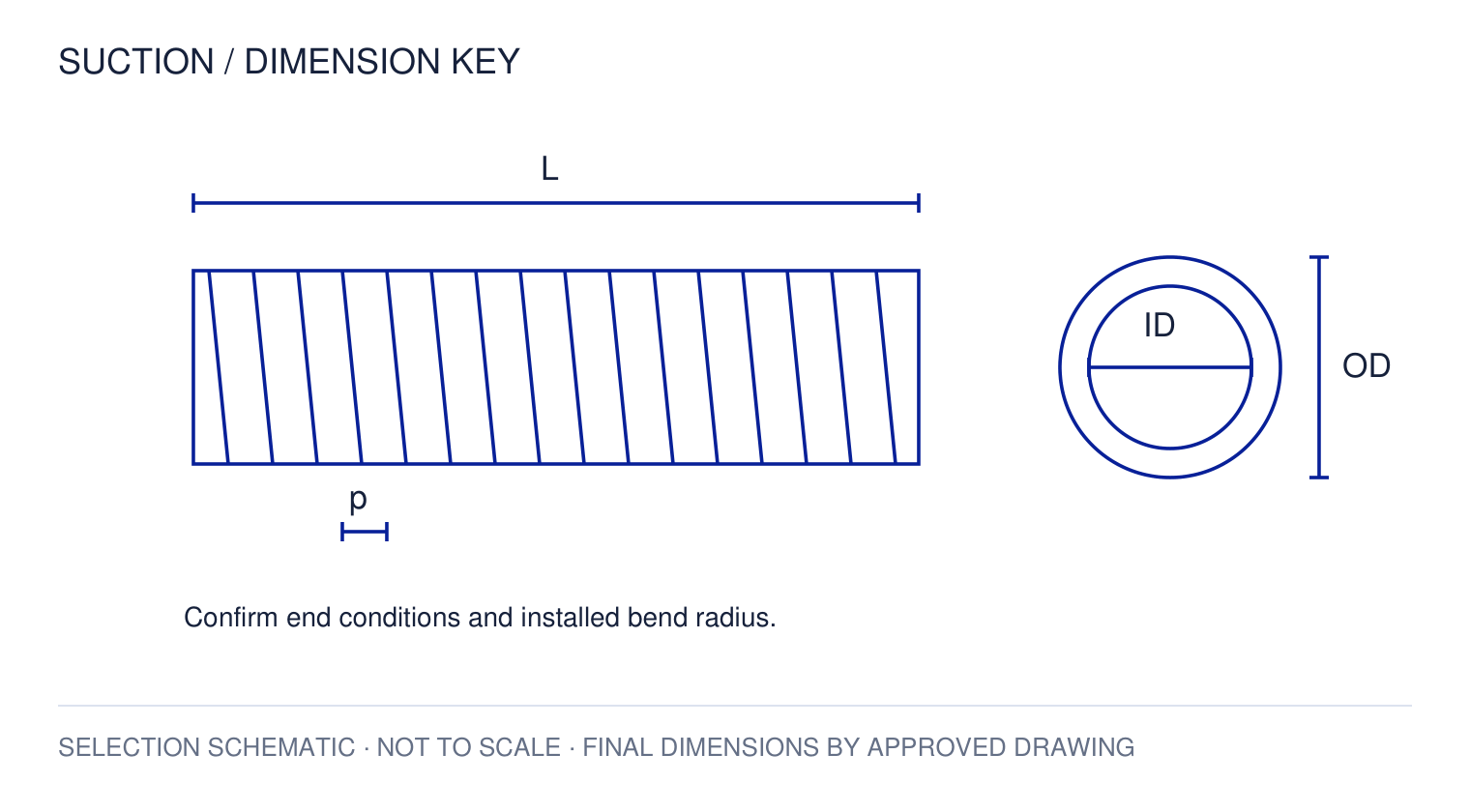

SELECTION DRAWING
8-inch Clear Spiral PVC Suction Hose — dimension key
ID/OD: inside/outside diameter; p: helix pitch; L: hose length; R: bend radius. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601959109555
8-inch Clear Spiral PVC Suction Hose
A spiral-reinforced hose combines a flexible wall with a reinforcing helix. Selection depends on conveyed material and the required suction, pressure and bend conditions.
Request a quotationProduct illustration based on a supplied product-family reference. Confirm the selected dimensions and end details by drawing or sample.
PRODUCT INTRODUCTION
8-inch Clear Spiral PVC Suction Hose
A spiral-reinforced hose combines a flexible wall with a reinforcing helix. Selection depends on conveyed material and the required suction, pressure and bend conditions.
This product reference
The listing uses an 8-inch size description. Confirm the bore convention, wall construction and end connection dimensions.
Applications
Suction or transfer duties approved for the selected hose construction.
Selection & installation
Specify bore, wall, helix construction, length, medium, temperature and vacuum/pressure requirements. Confirm bend radius and end connections.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
