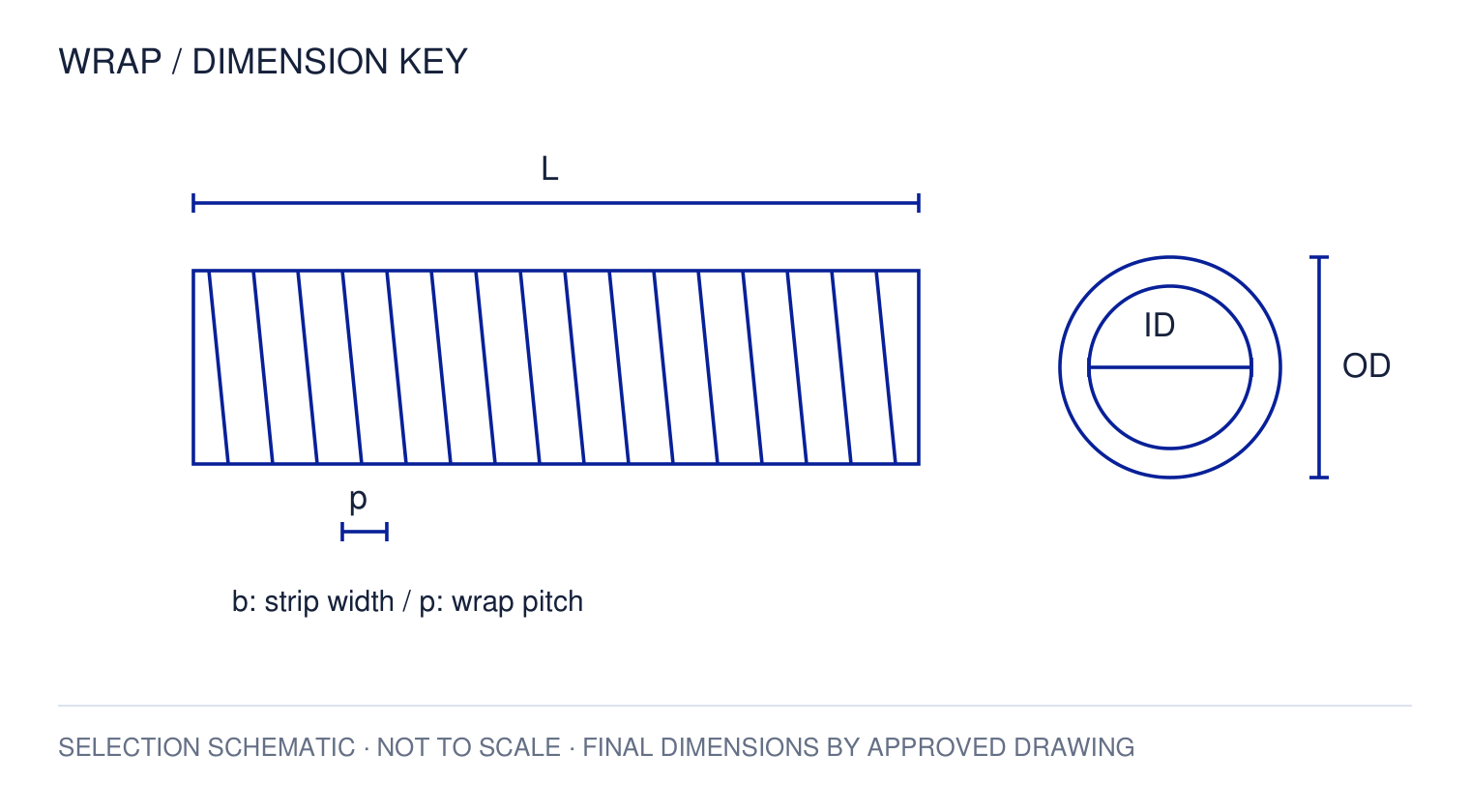

SELECTION DRAWING
PE Spiral Cable Wrapping Tube — dimension key
D: wrap diameter; p: pitch; b: strip width; L: supplied length. Selection schematic; not a production drawing.
PRODUCT REFERENCE · 1601947993522
PE Spiral Cable Wrapping Tube
Spiral wrapping is applied around an existing bundle and permits cable branches to exit between turns. Wrap size is selected around bundle diameter and the required coverage.
Request a quotationProduct illustration based on a supplied product-family reference. Confirm the selected dimensions and end details by drawing or sample.
PRODUCT INTRODUCTION
PE Spiral Cable Wrapping Tube
Spiral wrapping is applied around an existing bundle and permits cable branches to exit between turns. Wrap size is selected around bundle diameter and the required coverage.
This product reference
This reference is offered as pe spiral cable wrapping tube. Specify the required size and configuration in the enquiry; dimensions and construction are confirmed against the selected item.
Applications
Retrofit cable-bundle organization with branch access.
Selection & installation
Specify material, wrap diameter, strip width, pitch and supplied length. Confirm the required bundle range.
Technical confirmation
Confirm the exact material, dimensions, tolerances, installation conditions and required test documentation with your quotation. Store listing titles are not substitutes for approved product data sheets.
